RTK2 Spindle Speed Output

The control on the left has provision for spindle speed output, indicated by the presence of the trim pots and other components in that area of the top board.

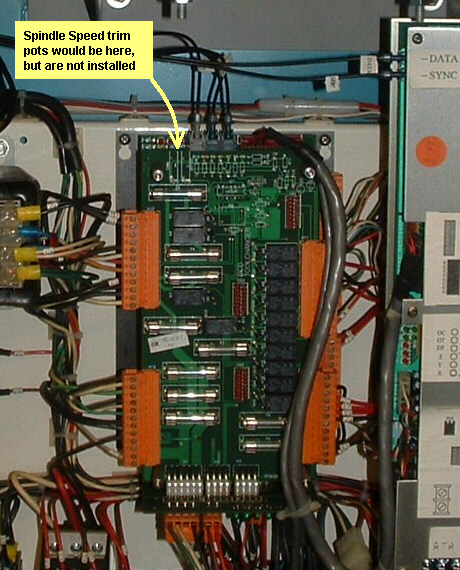

The control on the right does not support spindle speed output. The section of the board where the trim pots and other components would be is not populated.
