This is a Centroid T400 retrofit to a 1997 slant-bed turret lathe. The retrofit was completed in August 2011.
The machine has a 15HP spindle motor; 12-station turret;
two-range headstock; hydraulic chuck; and hydraulic tailstock quill.
The T400 console mounted in place of the original DX32 console, with the help
of a small adapter sleeve.
The original Yaskawa servo drives and motors (late-model CACR-SR series drives)
worked nicely with the Centroid MPU11 and GPIO4D control units, in a velocity
control mode.

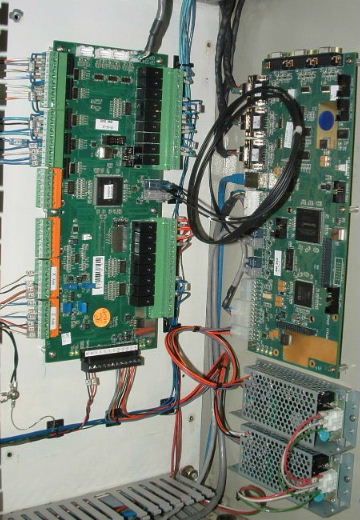

The MPU11 and GPIO4D fit in the space previously occupied by the DX32 control
computer.
